How to Test a Transmission Vacuum Modulator: Quick Guide

To test a transmission vacuum modulator, use a vacuum pump to check for proper vacuum retention. Ensure the modulator holds pressure without leaks.

A transmission vacuum modulator is crucial for the proper functioning of your vehicle’s transmission system. It regulates the transmission’s shift points based on engine vacuum levels. A faulty modulator can lead to erratic shifting, rough idling, and decreased fuel efficiency.

Testing the vacuum modulator can help diagnose transmission issues early, saving you from costly repairs. This process involves simple tools and can be done at home or by a professional. Understanding how to test and maintain this component can significantly extend the life of your vehicle’s transmission system.

How to Test a Transmission Vacuum Modulator: Quick Guide

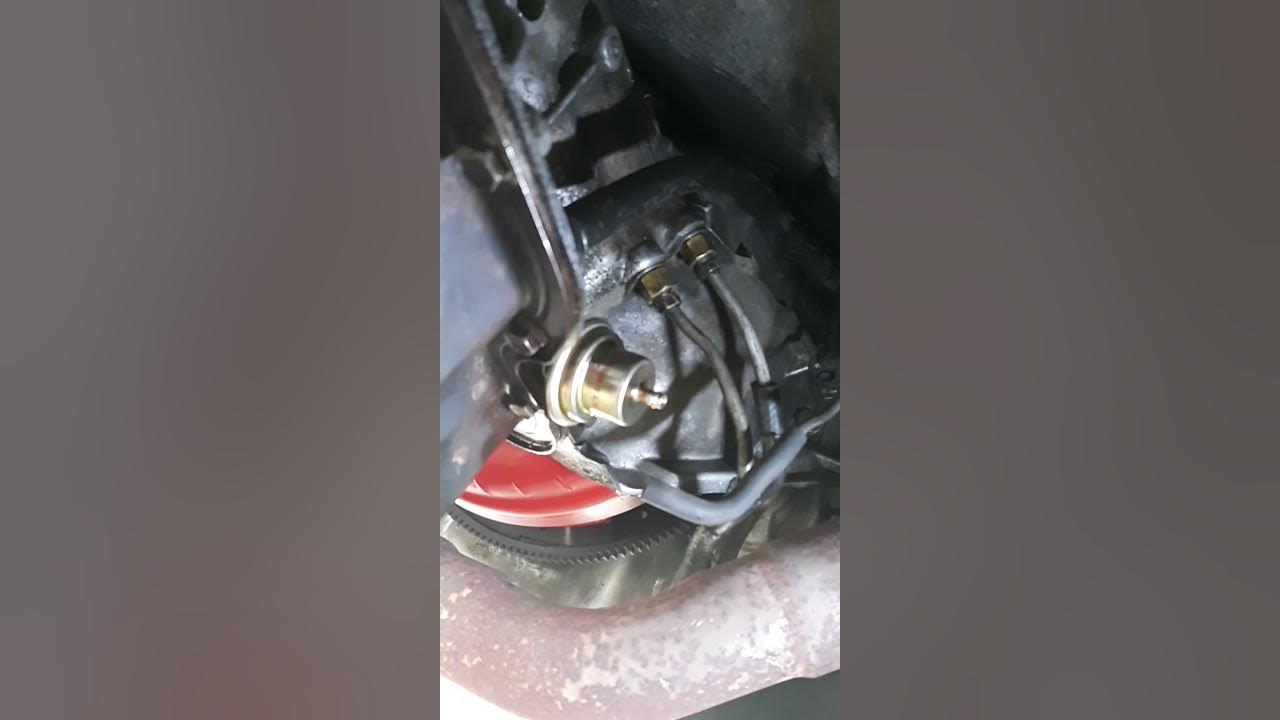

Credit: m.youtube.com

Introduction To Transmission Vacuum Modulators

Testing a transmission vacuum modulator involves inspecting vacuum lines for leaks and using a vacuum gauge to check performance. Ensure the modulator maintains proper vacuum pressure for optimal transmission operation. Identifying issues early helps prevent transmission problems and costly repairs.

How to Test a Transmission Vacuum Modulator

Purpose Of A Vacuum Modulator

The vacuum modulator helps control the transmission shifting in a car. It uses engine vacuum to adjust the transmission pressure. This process ensures smooth gear shifts while driving. Without it, the car may not shift gears correctly. Engine vacuum is a crucial part of this system. The modulator reads these signals to perform its job. It ensures the transmission works efficiently.

Signs Of Vacuum Modulator Failure

A bad vacuum modulator can cause many issues. You might notice hard shifting between gears. Sometimes, the car may not shift at all. Another sign is poor engine performance. The engine might run rough or stall. Transmission fluid leaks can also indicate a problem. Smoke from the exhaust is another warning sign. Low engine vacuum can cause these symptoms too. Regular checks can help avoid serious issues.

Tools And Materials Needed

Gather essential tools like a vacuum gauge, screwdriver, and pliers. Ensure you have a clean workspace and vehicle manual.

How to Test a Transmission Vacuum Modulator

List Of Essential Tools

You need a vacuum gauge for this task. It helps measure the vacuum level. A wrench set is essential. It assists in removing bolts and nuts. Screwdrivers are also necessary. They help in loosening screws. Pliers can be useful. They are good for gripping and holding parts. Don’t forget the service manual. It provides important guidelines and specifications.

Safety Equipment

Always wear safety goggles. They protect your eyes from debris. Gloves are essential too. They keep your hands safe. Closed-toe shoes are a must. They protect your feet from heavy objects. Long sleeves and pants offer extra protection. They cover your arms and legs.

Locating The Vacuum Modulator

How to Test a Transmission Vacuum Modulator

The vacuum modulator is usually near the transmission. It is a small, round part. Look for it on the side or back of the transmission. Check your car’s manual for the exact location.

First, gather all tools you need. You will need a vacuum pump and a pressure gauge. Make sure the car is parked on a flat surface. Turn off the engine and let it cool. Disconnect the battery to be safe. Now, you are ready to test the vacuum modulator.

Visual Inspection

How to Test a Transmission Vacuum Modulator

Look for any visible cracks on the vacuum modulator. Check for dents or other damage on the surface. Ensure the modulator is securely mounted. Loose modulators can cause issues. Inspect the modulator for signs of wear. Worn parts may need replacement. Examine the area around the modulator for any fluid leaks. Leaks can indicate a problem with the modulator.

Check all vacuum hose connections for tightness. Loose connections can cause poor performance. Ensure the hoses are not cracked or damaged. Damaged hoses need to be replaced. Look for any signs of wear on the hoses. Worn hoses can lead to leaks. Inspect the hose clamps to ensure they are secure. Loose clamps can cause hose disconnections.

Vacuum Pressure Test

How to Test a Transmission Vacuum Modulator

Attach the vacuum gauge to the modulator. Make sure all connections are tight. Start the engine and let it idle. Observe the vacuum gauge reading. It should show a stable reading. Rev the engine and watch the gauge. The reading should change as the RPMs increase.

A reading between 15-20 inches of mercury is normal. Less than 15 inches may indicate a leak. More than 20 inches could mean a blockage. Fluctuating readings suggest inconsistent vacuum supply. Take note of any irregularities. These can help diagnose issues.

How to Test a Transmission Vacuum Modulator: Quick Guide

Credit: parts.olathetoyota.com

Modulator Valve Test

How to Test a Transmission Vacuum Modulator

Locate the transmission vacuum modulator on your vehicle. It’s usually on the side of the transmission. Disconnect the vacuum line attached to the modulator. Use a wrench to remove the bolt holding the modulator in place. Carefully pull out the modulator valve. Make sure to note the position of any seals or gaskets. Inspect the modulator valve for any visible damage. Replace any worn parts before proceeding with the test.

Examine the valve for signs of wear or damage. Press the valve to check its movement. The valve should move smoothly without sticking. Look for any fluid leaks around the valve area. Replace the valve if there are any signs of damage. Ensure the valve is clean before reinstalling. Reattach the vacuum line securely once the check is complete.

Driving Test

Testing a transmission vacuum modulator involves checking for proper function and vacuum leaks. Ensure the modulator’s diaphragm moves smoothly. Inspect the vacuum line for cracks or damage.

Observing Shift Patterns

Drive the car at different speeds. Pay attention to how the car shifts gears. Shifts should be smooth and timely. A delay in shifting might indicate a problem. Quickly changing gears can also be a sign. Note any unusual noises during shifts. Grinding or clunking sounds are not normal. Check if the car hesitates before shifting. This could be another issue.

Identifying Irregularities

Look for signs of poor performance. The car should run smoothly. Feel for any jerks or jolts during driving. These are signs of transmission issues. Pay attention to engine RPMs. They should match the speed of the car. Unusual engine behavior could mean a faulty modulator. Check for leaks under the car. Fluid leaks are a bad sign. Inspect the vacuum lines for any cracks or damage. Replace damaged lines immediately to avoid further issues.

How to Test a Transmission Vacuum Modulator: Quick Guide

Credit: rennlist.com

Analyzing Test Results

How to Test a Transmission Vacuum Modulator

Check the modulator for leaks. A leak means the modulator needs replacement. Test the vacuum line for cracks. Replace the line if it is damaged.

Compare your test results with the manufacturer’s specifications. If the readings are off, the modulator might be faulty. Consider replacing it.

Low vacuum pressure often causes shifting problems. Inspect the vacuum hose for clogs. Clean or replace it if needed. If the transmission slips, the modulator might be bad. A faulty modulator can affect engine performance.

Listen for any unusual noises from the transmission. Strange sounds could mean a faulty modulator. Always check for fluid leaks. Leaks can lead to serious issues.

Frequently Asked Questions

How Do I Know If My Transmission Vacuum Modulator Is Bad?

Signs include rough shifting, delayed gear changes, or black smoke from the exhaust. Check for fluid leaks and poor engine performance.

How To Adjust Transmission Vacuum Modulator?

Locate the vacuum modulator on the transmission. Turn the adjustment screw clockwise to increase pressure, counterclockwise to decrease.

How Do You Know If Your Egr Modulator Is Bad?

Check for rough idling, poor acceleration, or increased emissions. A check engine light may also indicate issues.

What Does A Vacuum Modulator Do In Automatic Transmission?

A vacuum modulator controls the shift points in an automatic transmission. It uses engine vacuum to adjust hydraulic pressure. This ensures smooth gear changes based on engine load.

Conclusion

Testing a transmission vacuum modulator is essential for vehicle performance. Follow the steps outlined to ensure proper function. Regular checks can prevent costly repairs. Always use reliable tools and consult your vehicle’s manual. Proper maintenance extends the life of your transmission system.

Happy driving and safe travels!
