How to Test a Convertible Top Motor: Quick & Easy Guide

To test a convertible top motor, check the fuse and relay first. Then, use a multimeter to measure voltage and continuity.

Testing a convertible top motor is essential for maintaining your vehicle’s functionality and preventing potential issues. A malfunctioning motor can cause your convertible top to get stuck, leading to inconvenience and possible damage. By conducting regular checks, you ensure that the motor operates smoothly, providing a seamless experience when you want to enjoy an open-air drive.

Understanding the basics of how to test a convertible top motor can save you time and money. This guide will help you identify common problems and take the necessary steps to keep your convertible top in optimal condition.

Introduction To Convertible Top Motors

How to Test a Convertible Top Motor

Convertible top motors are essential for your car’s convertible roof. They help open and close the roof smoothly. A well-functioning motor ensures your roof operates correctly. It protects you from weather and adds style to your car.

A properly working motor prevents roof jams. It ensures the roof opens and closes without issues. This avoids costly repairs. It also extends the life of your convertible top. A reliable motor provides a better driving experience.

A faulty motor may cause the roof to move slowly. It may stop midway. Strange noises could indicate a problem. Clicking or grinding sounds often signal issues. The roof might not open or close fully. These symptoms need immediate attention.

How to Test a Convertible Top Motor: Quick & Easy Guide


Preparing For The Test

Testing a convertible top motor involves checking its power supply, functionality, and response to controls. Ensure all connections are secure and the motor operates smoothly without unusual noises.

How to Test a Convertible Top Motor

Tools And Equipment Needed

Gather all the necessary tools. You will need a multimeter and a screwdriver. A wrench set and safety gloves are also important. Protective eyewear is a must. Have a clean cloth ready.

Make sure you have a flashlight. This helps to see in dark areas. A manual of your car can be useful. Always use the right tools to avoid damage.

Safety Precautions Before Starting

Safety is very important. Always disconnect the car battery before starting. Wear safety gloves to protect your hands. Protective eyewear will keep your eyes safe.

Work in a well-lit area. Keep a fire extinguisher nearby. Avoid loose clothing that can get caught. Children and pets should stay away from the work area.

Locating The Convertible Top Motor

How to Test a Convertible Top Motor

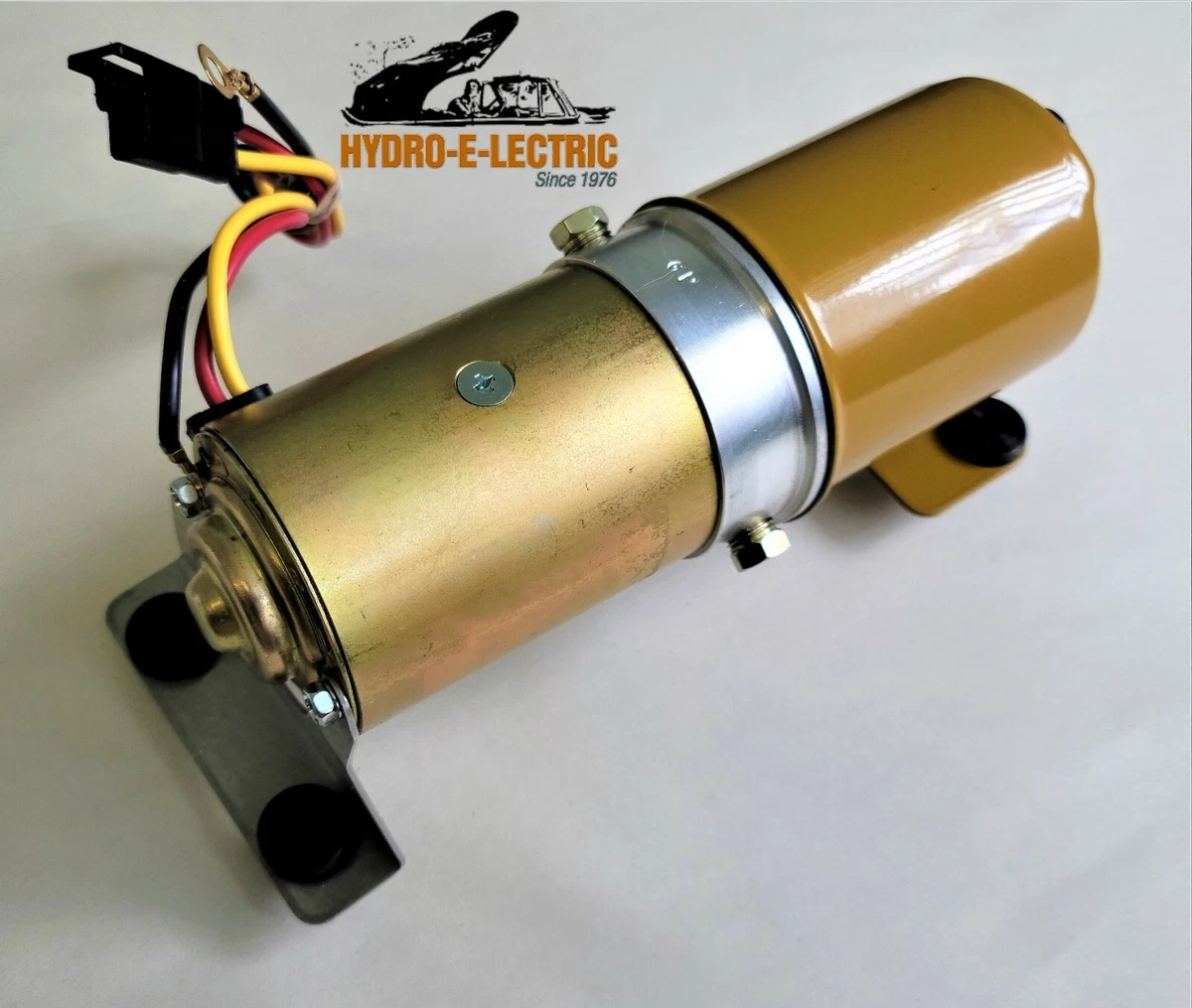

The convertible top motor can be in various locations. Some models have it near the trunk. Others place it under the rear seats. Check the car manual to find the exact spot. The motor is usually close to the hydraulic pump. Look for a small, box-like device. This is often the convertible top motor.

Open the trunk or lift the rear seats. Use a flashlight to see better. Remove any covers or panels in the way. Be careful not to damage any wires. You might need a screwdriver to take off panels. Once the motor is visible, you can start testing it.

Visual Inspection

How to Test a Convertible Top Motor

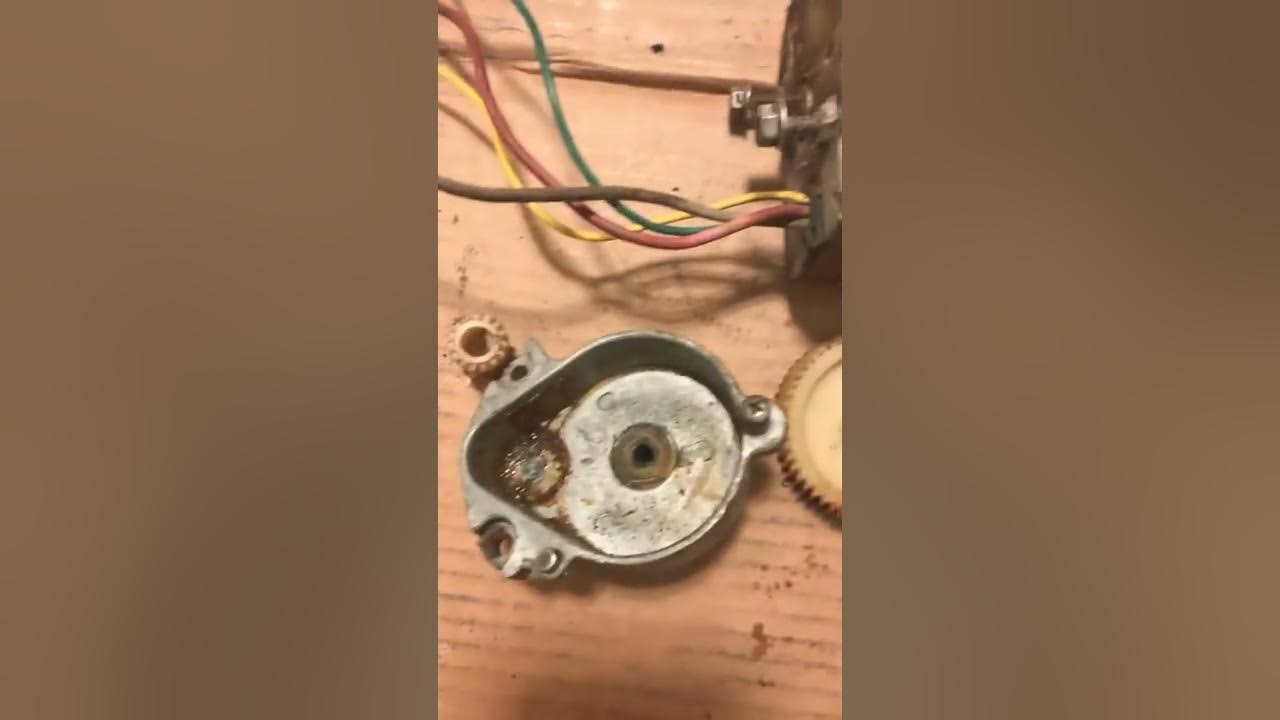

Start by looking at the convertible top motor. Check for any cracks or dents. Look closely at the motor housing. Make sure there are no leaks or rust spots. Worn-out wires can also be a sign of damage. Inspect the belt and gears for wear and tear. Loose parts can cause problems too.

Examine the electrical connections. Make sure they are clean and tight. Corroded terminals can cause poor performance. Check the wiring harness for any frayed or broken wires. Use a multimeter to test the voltage. Ensure that the connections are secure and free of debris.

Electrical Testing

How to Test a Convertible Top Motor

Turn off the car and make sure the top is in a safe position. Set the multimeter to measure voltage. Connect the multimeter probes to the motor terminals. Check the voltage reading; it should match the car’s battery voltage. If there’s no voltage, the problem is in the wiring. Next, set the multimeter to measure continuity. Touch the probes to the motor terminals again. A beep sound means the motor has continuity. No beep means the motor is faulty.

Voltage should match the battery voltage. If voltage is low, check the battery and wiring. Continuity means the motor circuit is complete. No continuity means the motor has an internal issue. A good motor will have both proper voltage and continuity.

How to Test a Convertible Top Motor: Quick & Easy Guide


Manual Operation Test

Testing a convertible top motor involves checking power supply, motor function, and mechanical components. Ensure the motor receives the correct voltage and operates smoothly.

How to Test a Convertible Top Motor

Bypassing The Switch To Test Motor Function

Locate the motor for the convertible top. Find the switch that controls the top. Use a jumper wire to bypass the switch. Connect one end of the wire to the power source. Attach the other end to the motor’s input. Observe the motor’s behavior. If it moves, the motor works. If it doesn’t move, the motor may be faulty. Ensure all connections are secure. Double-check all steps before concluding.

Troubleshooting With The Convertible Top’s Manual Override

Find the manual override mechanism. Consult your car’s manual for its location. Engage the manual override to operate the top. Watch for any resistance or unusual sounds. If the top moves smoothly, the motor may be fine. If it struggles, inspect for obstructions. Check the motor’s connections and wiring. Ensure the mechanism is not blocked. Repeat the test to confirm findings.

Hydraulic System Check

How to Test a Convertible Top Motor

Check the fluid levels in the hydraulic system. Use the dipstick to see the fluid level. Make sure the fluid is between the minimum and maximum marks. If the fluid is low, add more fluid. Use the recommended hydraulic fluid for your car. Always clean the area around the cap before opening it. This keeps dirt out of the system.

Look for any leaks in the hoses and cylinders. Use a flashlight to see better. Check for wet spots or dripping fluid. Feel the hoses for weak spots or bulges. Replace any damaged hoses or cylinders. Tighten any loose connections. Make sure everything is secure before testing the motor.

How to Test a Convertible Top Motor: Quick & Easy Guide


Finalizing The Diagnosis

Check the voltage readings from the test. Compare them to the manufacturer’s specifications. If the readings differ, there may be an issue. Inspect the motor for any physical damage. Look for any signs of wear or corrosion. This can affect performance. Listen for any unusual noises from the motor. Strange sounds can indicate internal problems.

Evaluate the cost of repair. Sometimes, repairing the motor may be cheaper. Consider the age of the motor. Older motors may need replacement. Consult a professional mechanic. They can give expert advice on the best option. Factor in the time required for repairs. Sometimes, replacement is faster.

Frequently Asked Questions

Why Is My Convertible Top Not Going Up?

Your convertible top might not be going up due to a hydraulic fluid leak, a faulty motor, or electrical issues. Check the fluid level, inspect for leaks, and ensure all connections are secure. If problems persist, consult a professional mechanic.

How Does A Convertible Top Motor Work?

A convertible top motor powers the hydraulic system to raise and lower the car’s roof. It operates using electrical signals.

Why Won’t My Convertible Top Close All The Way?

Your convertible top might not close due to mechanical issues, low hydraulic fluid, or electrical problems. Check for obstructions. Consult your vehicle’s manual and consider professional inspection.

Can A Convertible Top Be Repaired?

Yes, a convertible top can be repaired. Small tears, leaks, and mechanical issues are often fixable. Consult a professional for best results.


Testing a convertible top motor is essential for maintenance. Follow the steps outlined for accurate results. Regular checks ensure longevity and performance. Always use proper tools and safety measures. By doing so, you can keep your convertible in top condition and enjoy smooth operations year-round.
